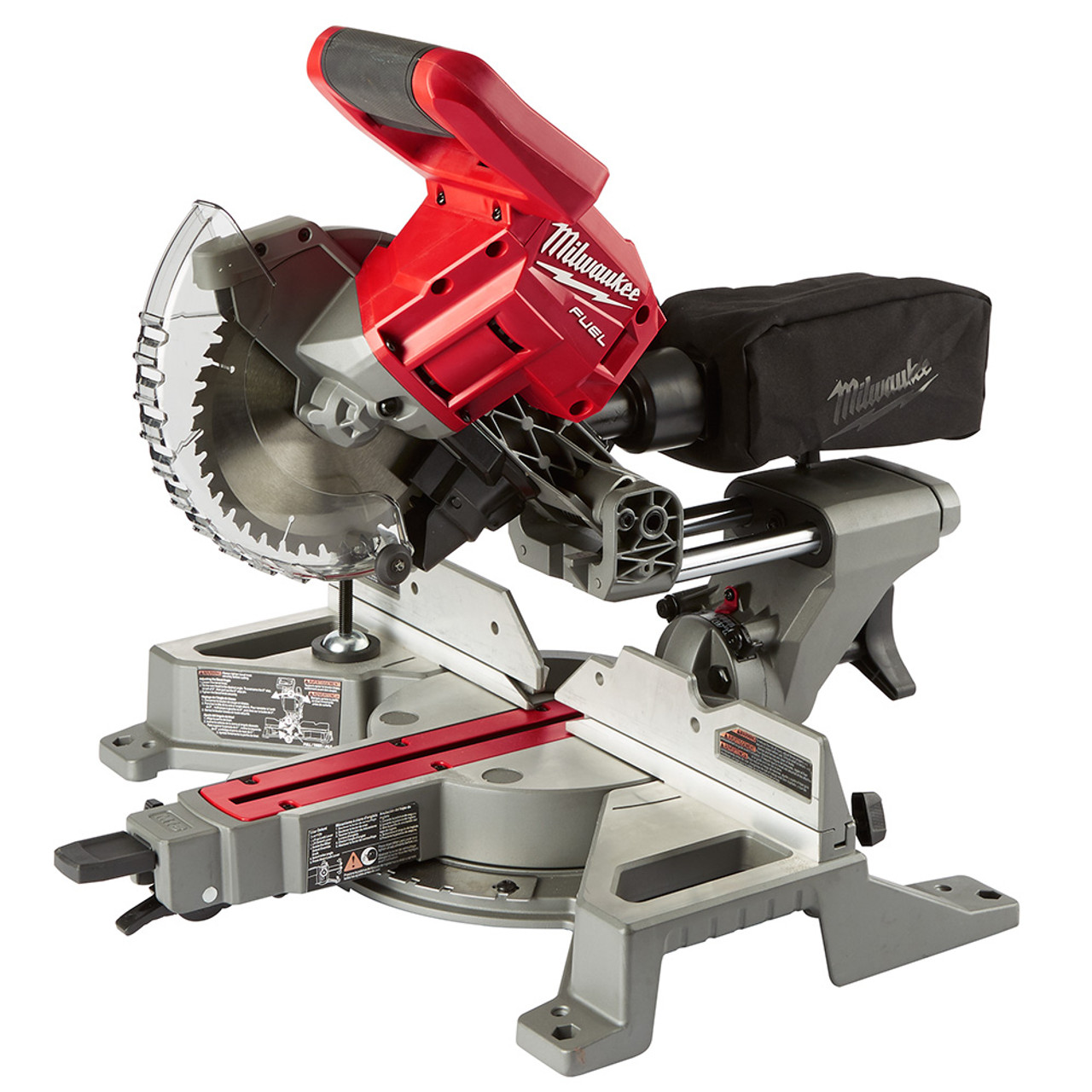

Milwaukee 2733-20 M18 FUEL Cordless 7-1/4" Dual Bevel Sliding Compound Mitre Saw (Tool Only)
The M18 FUEL 7-1/4" Dual-Bevel Sliding Compound Mitre Saw has a POWERSTATE brushless motor that delivers 5,000 RPM no-load speed for the toughest wood cutting jobs. This saw offers extreme cutting capabilities, with double bevel functionality allowing a variety of different cuts without flipping or turning the workpiece. The cam locking mitre detent system allows you to effectively lock in your desired mitre settings and then effortlessly return to those settings time and time again. For added control and accuracy, this tool features a shadow cut line indicator that helps quickly line up cuts without light reflection or laser guides. An integrated carry handles make transporting this tool easy while weighing only 28 lbs with a battery, makes it light enough for one person to use and maneuver around.
FEATURES:
- POWERSTATE brushless motor delivers 5,000 RPM no-load speed
- Dual bevel functionality allows a variety of different cuts without flipping or turning the workpiece
- Cam Locking Miter Detent System helps produce precise, repeatable cuts every time
- Shadow cut line indicator for quickly lining up cuts
- Integrated top and side carry handles for easy transportation
- Weighs only 28 lbs with battery
- Dual-Bevel with stops at 45° and 48°
- 3-1/2" Vertical Capacity (base against the fence)
- 2×8 Horizontal Capacity (lying flat at 90°)
- 2-5/8" Nested Crown Capacity
TECHNICAL SPECIFICATIONS:
- Power Source: 18 Volt Cordless
- Arbor Size: 5/8"
- Blade Size: 7-1/4"
- Blade Thickness (Kerf): Max 1/8"
- Miter Cuts:
- Max Height: 2.2"
- Max Width at 0° Miter: 8.3"
- Max Width at 45° Miter: 5.8"
- Bevel Cuts:
- Max Height at 0° Bevel: 2.2"
- Max Height at Left 45° Bevel: 1.6"
- Max Height at Right 45° Bevel: 0.8"
- Compound Cuts (45° Miter and 45° Bevel):
- Left: 5.9" W at 1.6" H
- Right: 5.9" W at 0.8" H
- Workpiece Vertical Against Fence:
- 0° Miter / 0° Bevel: 3.6" W at 0.9" H
- Left 45° Miter / 0° Bevel: 3.6" W at 0.8" H
- Right 45° Miter / 0° Bevel: 3.6" W at 0.7" H
- No Load RPM: 5,000
- Bare Tool Weight: 28 lbs
INCLUDES:
- 2733-20 M18 FUEL 7-1/4" Dual-Bevel Sliding Compound Mitre Saw
- 7-1/4" Carbide tipped blade
- Blade wrench
- Clamp
