Product Description

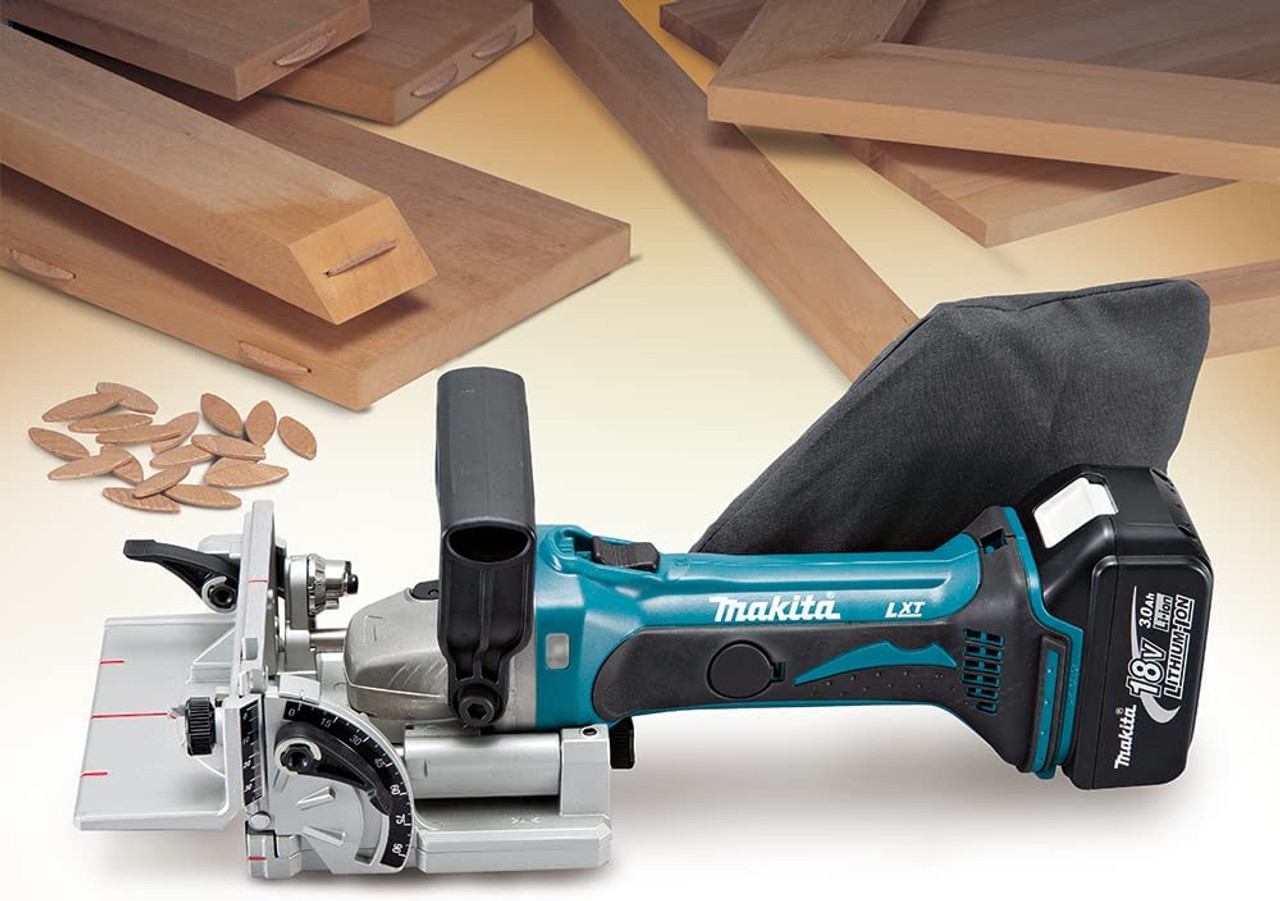

Makita DPJ180Z 18V LXT Cordless Plate (Biscuit) Joiner (Tool Only)
This lighweight cordless 18V LXT Plate Joiner combines powerful portable performance with an enhanced ergonomic design that improves handling, maneuverability, and control to deliver strong and accurate biscuit joints for furniture making, cabinet construction, and fine woodworking.
FEATURES:
- Anti-restart feature prevents accidental start-up of the tool during battery changing when the switch is locked in the on position
- Electronic current limiter with warning light prevents motor burnout caused by overloading
- Depth adjustment knob enables quick adjustment for #0, #10, and #20 biscuits

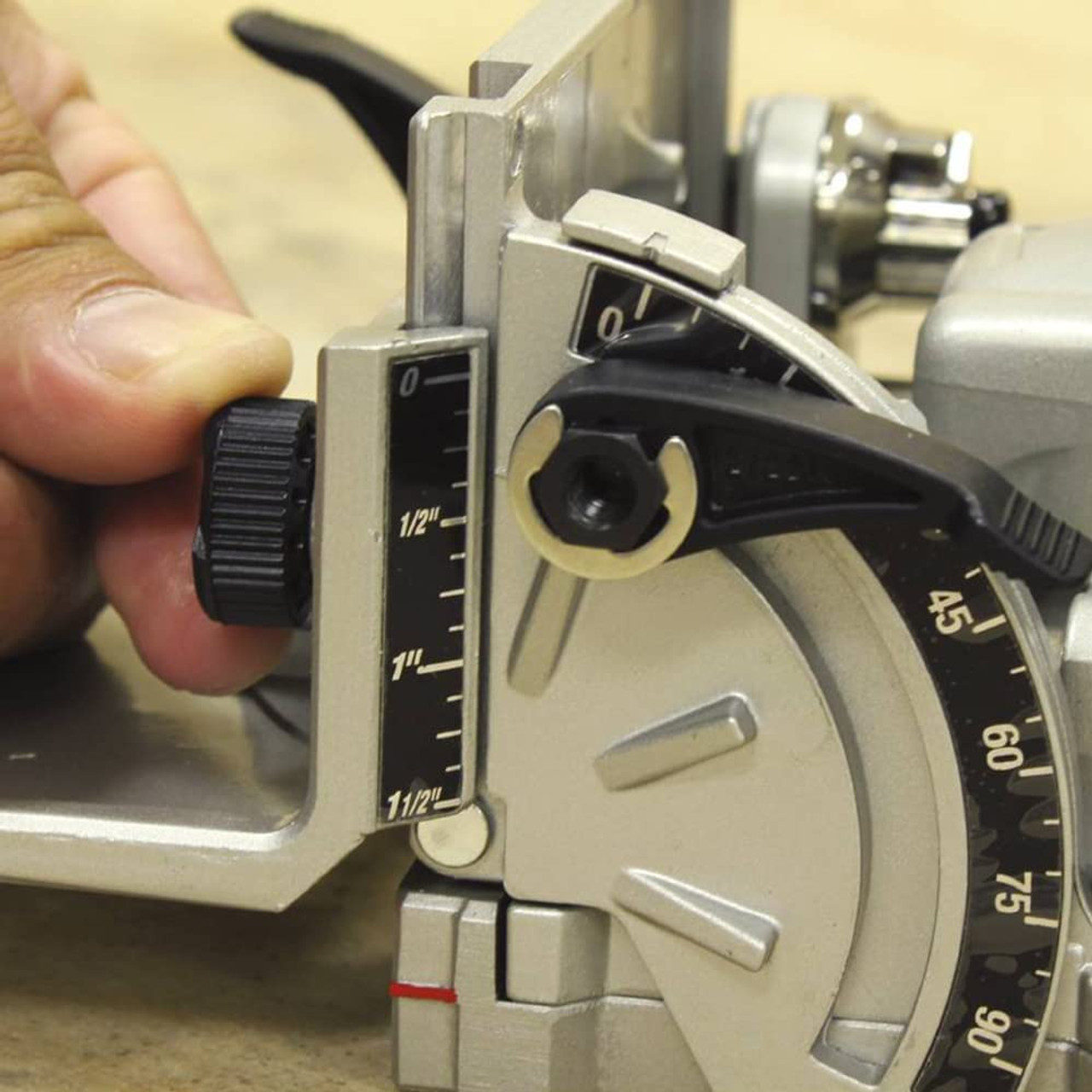

- Rack-and-pinion angle guide enables precise adjustment of the fence
- Cast aluminum adjustable fence with positive stops at 0°, 45°, and 90°
- Non-marring rubber insert strip eliminates damage to materials
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
TECHNICAL SPECIFICATIONS:
- Power Source: 18 Volt Volt Cordless
- Blade Diameter: 4" (100 mm)
- Maximum Cutting Depth: 3/4" (20 mm)
- No Load Speed (RPM): 6,500
- Bare Tool Weight: 5.3 lbs
INCLUDES:
- DPJ180Z 18V LXT Biscuit/Plate Joiner (Tool Only)
- 4" CT Cutter Blade 6T
- Angle Guide
- Dust Bag
- Lock Nut Wrench 20
- Set Plate
Warranty Information
For your convenience, you can access Makita's warranty and service policy here: Makita General Warranty Information.Product Videos
Custom Field
Package Type Bare Tool
Power Source 18V
Arbor Size 7/8 Inch Arbor
Blade Diameter 4 Inch
