DeWalt DCD1624GX2 20V MAX XR Cordless Brushless 2in Magnetic Drill Press Kit
Put the pressure on for premier drilling power with the 20V MAX XR Cordless 2in Magnetic Drill Press. With its innovative permanent magnetic base it firmly attaches to metals 1/4in or thicker no electricity needed. Power through tough jobs with a high-drilling capacity that creates up to a 2in hole through 2 inof structural steel. The press efficiently drills up to 40 holes per charge at 810 RPM and flaunts a tool-free quick-change chuck system ensuring seamless switching between 3/4in Weldon Shank and 5/8in keyed chuck. Plus with 5 variable speeds across 2 gears you have 10 speed settings to adapt to diverse applications.
FEATURES:
- Brushless motor drills up to 2in hole through 2in of structural steel.
- 2-Speed Mechanical Transmission and 5 variable speeds for a total of 10 different settings.
- Permanent Magnetic Base quickly mounts to steel with no electrical charge required.
- Tool-Free Quick-Change Chuck switches between 3/4in weldon-style shank and 5/8in keyed chuck.
- ANTI-ROTATION System senses the rotational motion of the tool and shuts it down if the motion is excessive.
- Adjustable Motor Height increases the range of accessory compatibility.
- Forward/Reverse Control to allow for a wide range of applications including tapping.
- On-board LED illuminates drilling area.
- Tool Connect option available with chip sold separately.
TECHNICAL SPECIFICATIONS:
- Power Source: 18V Cordless
- Accessory Connector Type & Size: 3/4in Weldon Chuck & 5/8in Keyed Chuck
- Power:
- RPM Range: 130-420 / 250-810 No Load Speed
- Stroke length: 5/8 in
- Capacity:
- 2in Annular Cutter
- Bare Tool Weight: 31.8 lbs

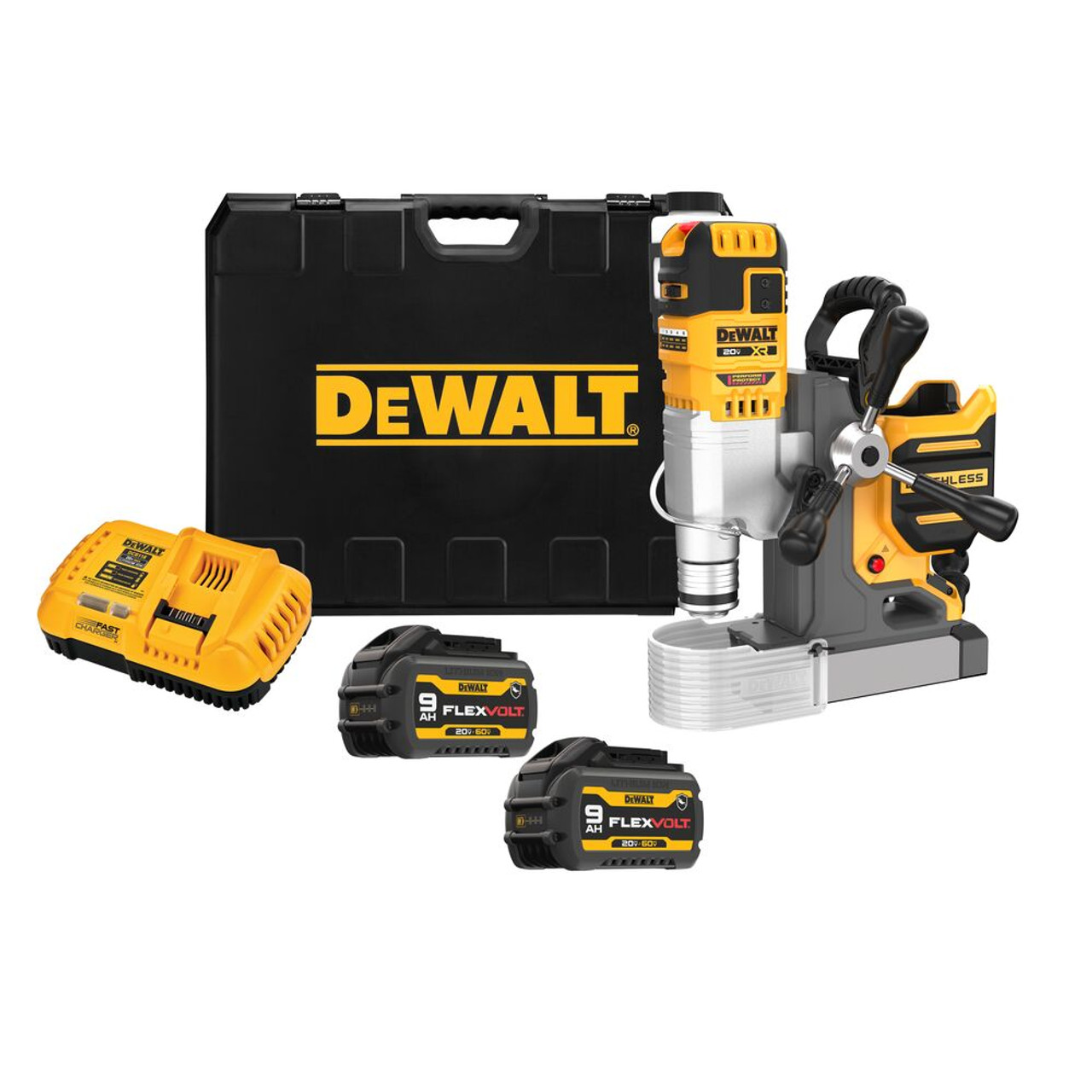

INCLUDES:
- DCD1624 20V MAX XR Cordless Brushless 2in Magnetic Drill Press
- (2) DCB609G FLEXVOLT Oil Resistant 9.0 Ah Battery Packs
- DCB118 Charger
- 5/8in Keyed Chuck Attachment
- Chuck Key
- Fluid Reservoir with Tube
- Chip Guard
- Safety Chain
- (2) Ejection Pins
- Feed Handle Set
- Reservoir Bracket
- Allen Key
- Wrench
- (2) Wing Bolts
- Kit Box
Warranty Information
For your convenience, you can access DeWalt's warranty and service policy here: DeWalt General Warranty Information.Product Videos
